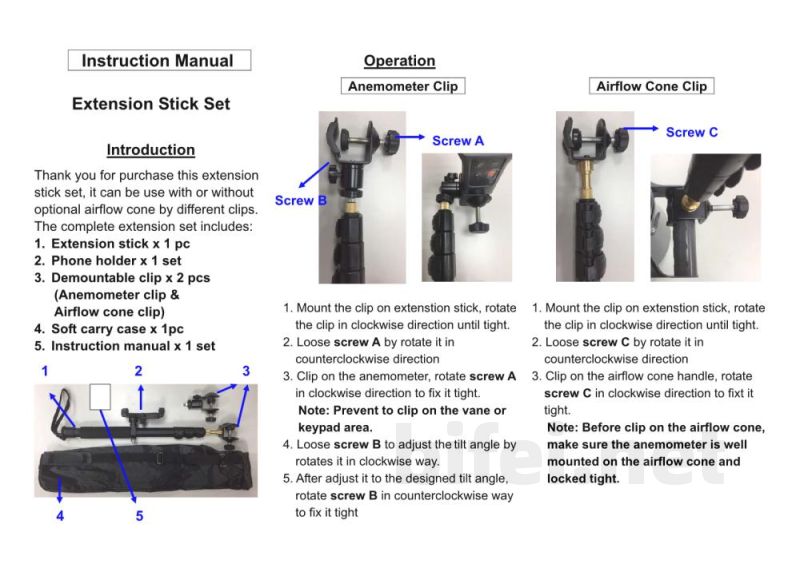

Instruction Manual – Extension Stick Set

Introduction
Thank you for purchasing this Extension Stick Set. It can be used with or without the optional airflow cone by using different clips. The complete set includes:
1. Extension stick x1 pc
2. Phone holder x1 set
3. Demountable clips x2 pcs (Anemometer clip & airflow cone clip)
4. Soft carry case x1 pc
5. Instruction manual x1 set

Operation

Anemometer Clip
Screw A / Screw B
1. Mount the clip on the extension stick and rotate it clockwise until tight.
2. Loosen Screw A by rotating it counterclockwise.
3. Attach the anemometer, then tighten Screw A by rotating it clockwise to secure it. Note: Do not clip onto the vane or keypad area.
4. Loosen Screw B to adjust the tilt angle by rotating it clockwise.
5. After adjusting to the desired tilt angle, tighten Screw B by rotating it counterclockwise.

Airflow Cone Clip
Screw C
1. Mount the clip on the extension stick and rotate it clockwise until tight.
2. Loosen Screw C by rotating it counterclockwise.
3. Attach the airflow cone handle, then tighten Screw C by rotating it clockwise.
Note: Before clipping onto the airflow cone, ensure the anemometer is properly mounted on the airflow cone and locked tightly.

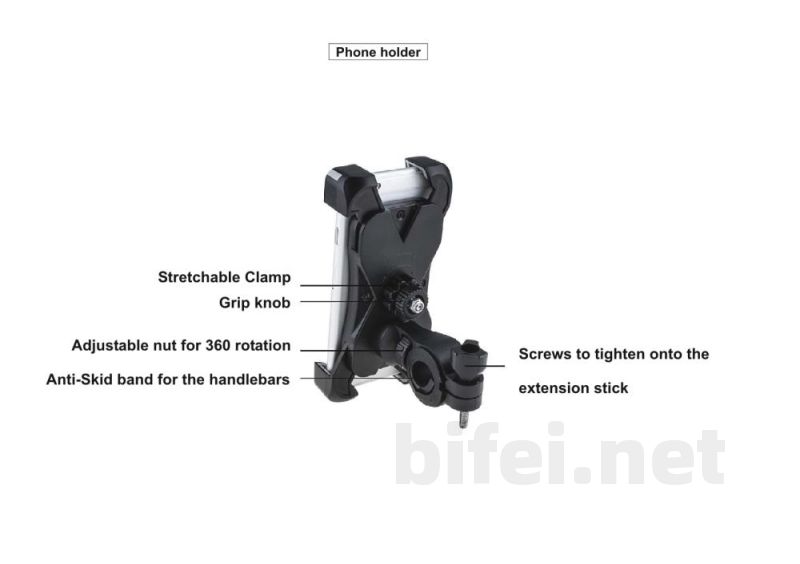

Phone Holder
Features:
- Stretchable clamp
- Grip knob
- Adjustable nut for 360-degree rotation
- Anti-skid band for handlebars
- Screws for tightening onto the extension stick
