Operation Manual
G0306C
Video Inspection Probe
Anritsu
M-W4068AE-1.0
Anritsu Corporation https://anritsu.com
February 2022 (First Edition)
Copyright 2022, ANRITSU CORPORATION. All rights reserved.
Nopart of this manual may be reproduced without prior written permission of the publisher. The operational instructions in this manual may be changed without prior notice.
Printed in Japan

General
The G0306C Video Inspection Probe (VIP) can be used to check for scratches or dirt on the end faces of optical I/O connectors and optical fibers. The Video Inspection Probe can be connected to the following instruments:
MT1000A Network Master Pro
MT1040A Network Master Pro
MT9085 Series Access Master
MT9090A μOTDR
MX900030A Connector Master

For how to use with each instrument, refer to the operation manual for the corresponding instrument. The MX900030A Connector Master is software used to observe, analyze, and make pass/fail judgments of fiber optic connector endfaces on a PC. Installation files can be downloaded from the following website:
https://anritsu.com/en/us/test-measurement/support/downloads/software/dwl010383

Note:
To use the VIP on each instrument, firmware update is necessary. Please confirm the latest information on the following download pages:
https://anritsu.com/en-US/test-measurement/support/downloads?model=MT1000A
https://anritsu.com/en-US/test-measurement/support/downloads?model=MT1040A
https://anritsu.com/en-US/test-measurement/support/downloads?model=MT9085%20Series
https://anritsu.com/en-US/test-measurement/support/downloads?model=MU909014C/14C6/15C/15C6downloadSoftware

Configuration
The VIP consists of the following components:
- Video Inspection Probe (VIP) – Standard accessory
- Soft case
- Probe tip case

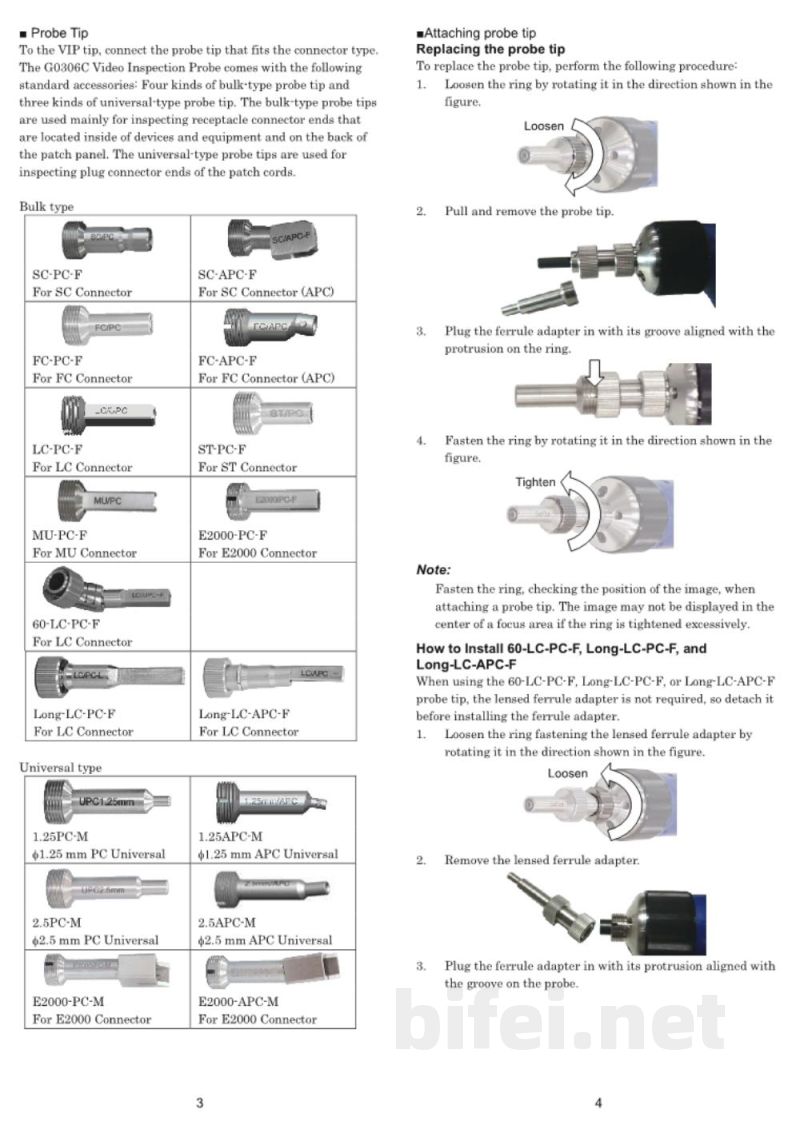

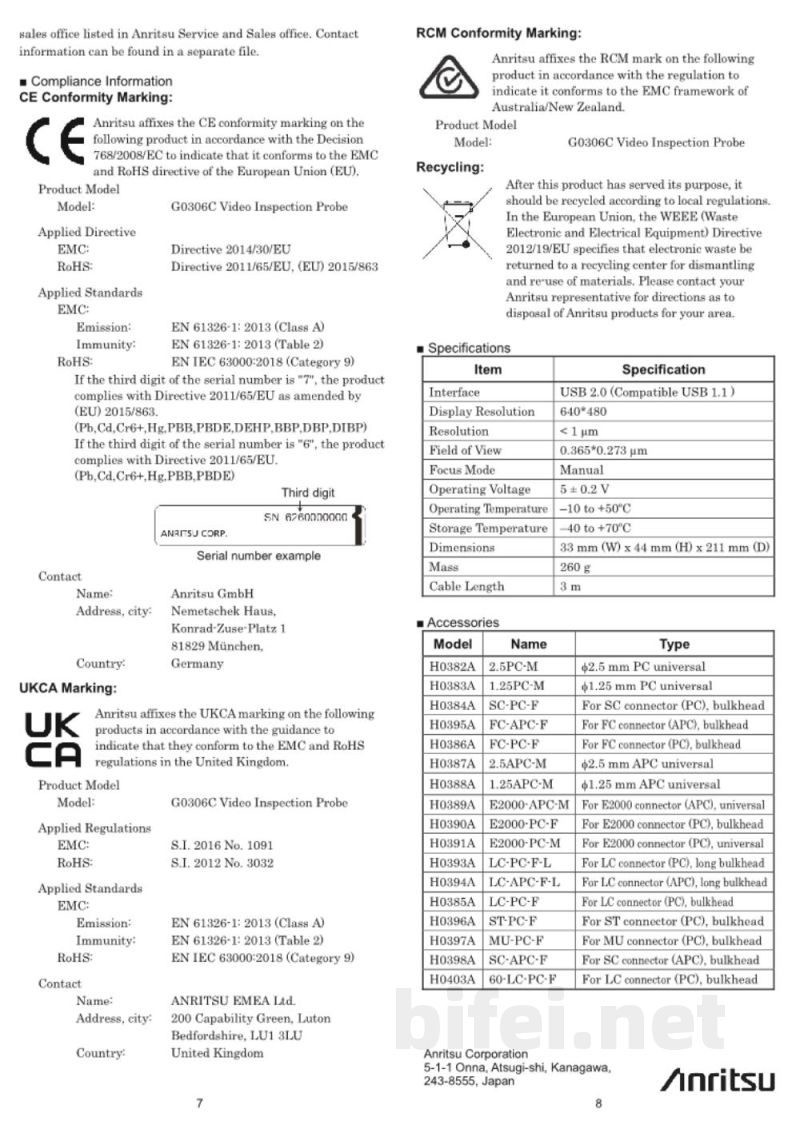

- Probe tips:
FC-PC-F
LC-PC-F
SC-PC-F
SC-APC-F
1.25PC-M
2.5PC-M
2.5APC-M
- Operation Manual

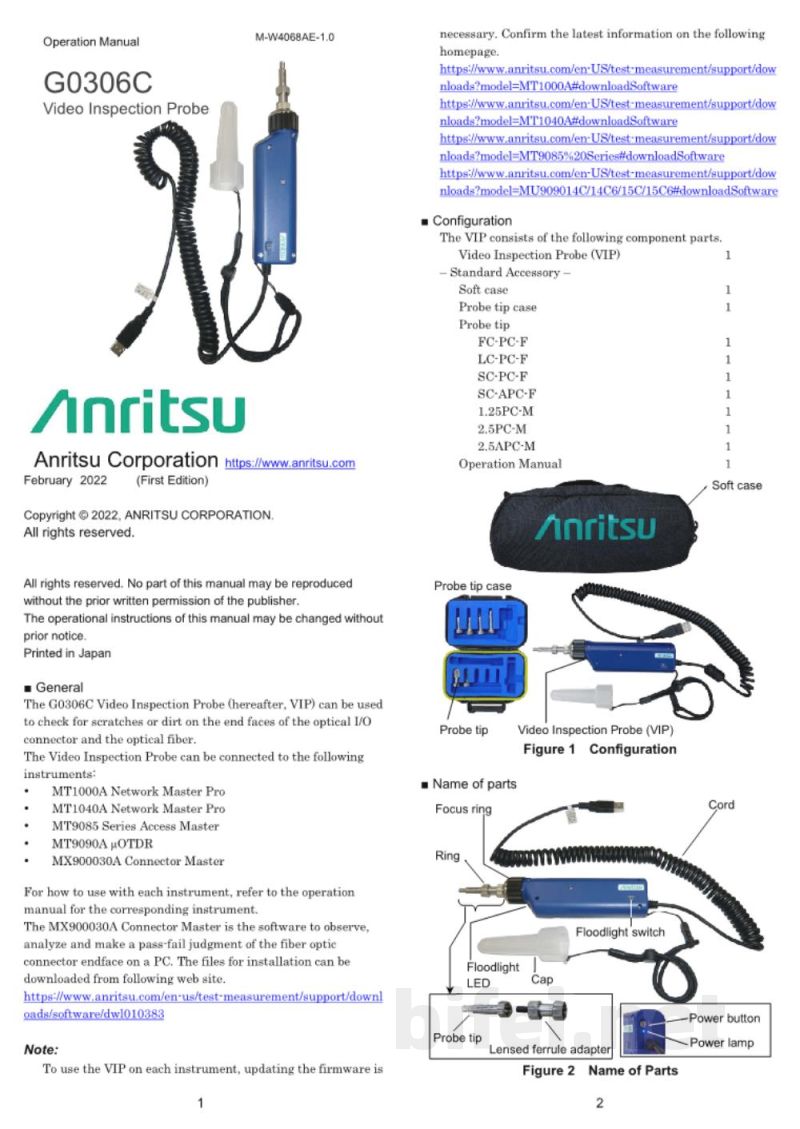

Figure 1: Name of parts

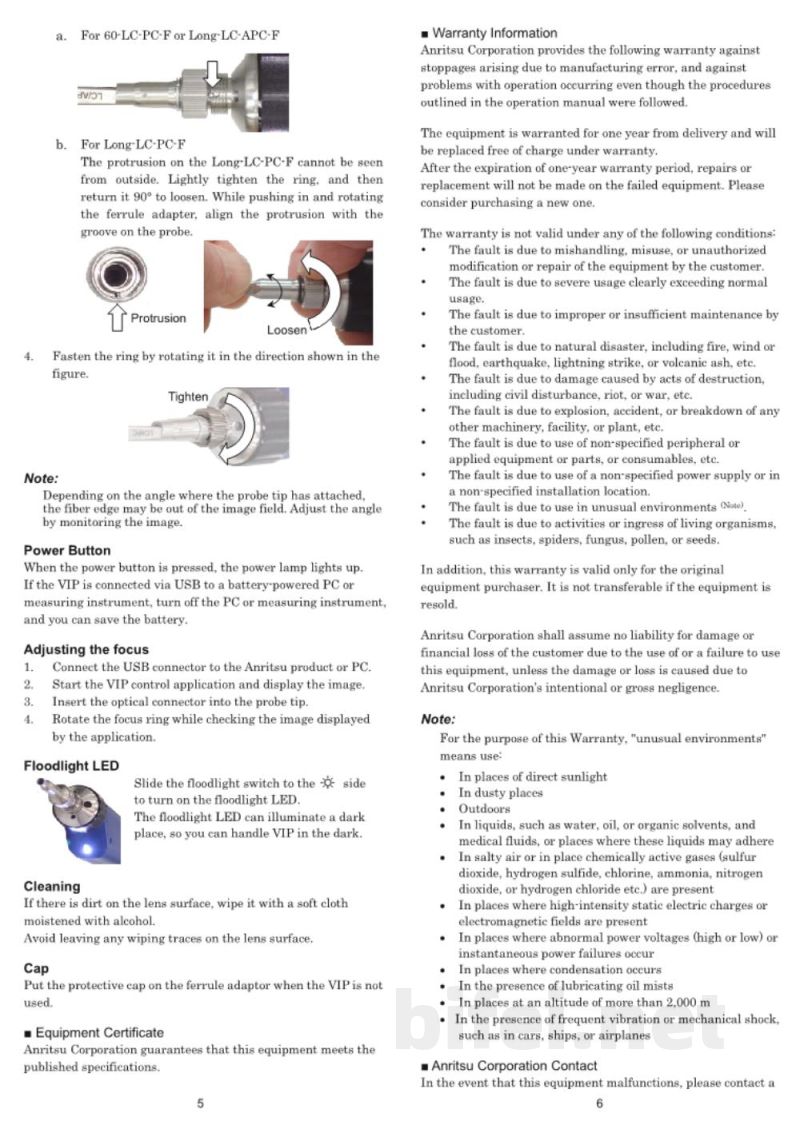

- Focus ring
- Ring
- Floodlight switch
- Floodlight LED
- Probe tip
