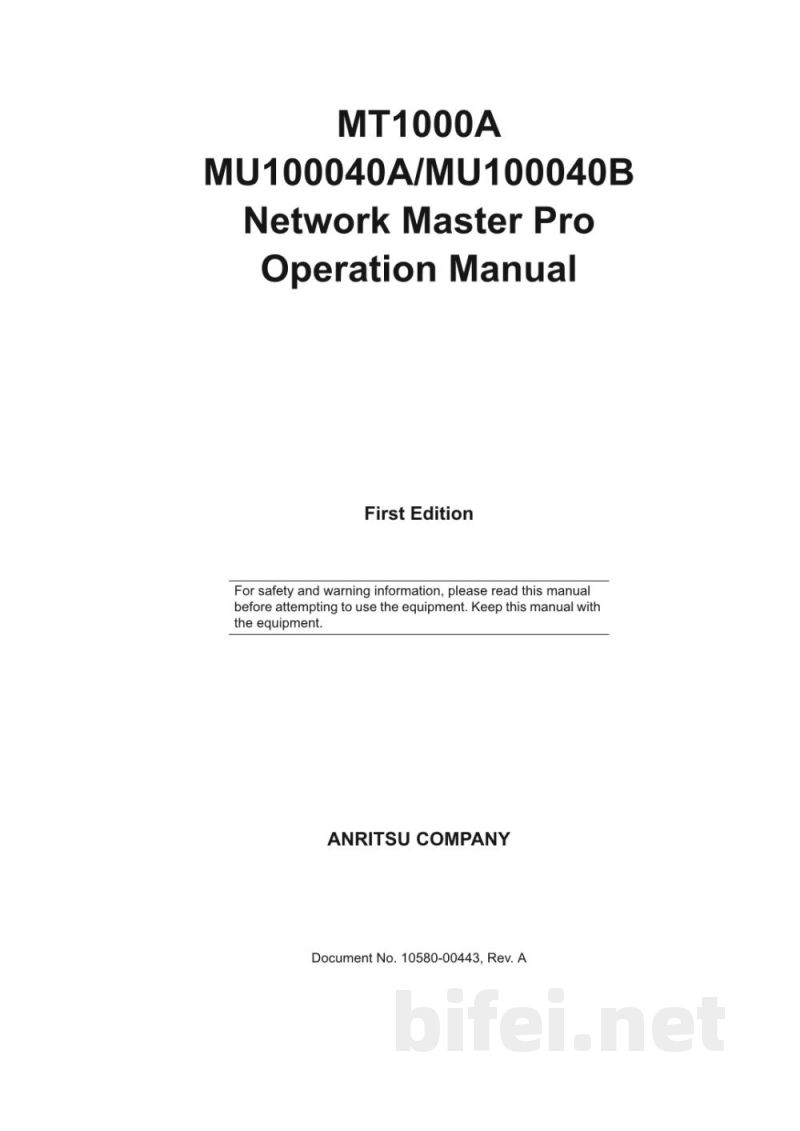

MT1000A
MU100040A / MU100040B
Network Master Pro
Operation Manual
First Edition

For safety and warning information, please read this manual before attempting to use the equipment. Keep this manual with the equipment.

ANRITSU COMPANY

Document No. 10580-00443 Rev. A

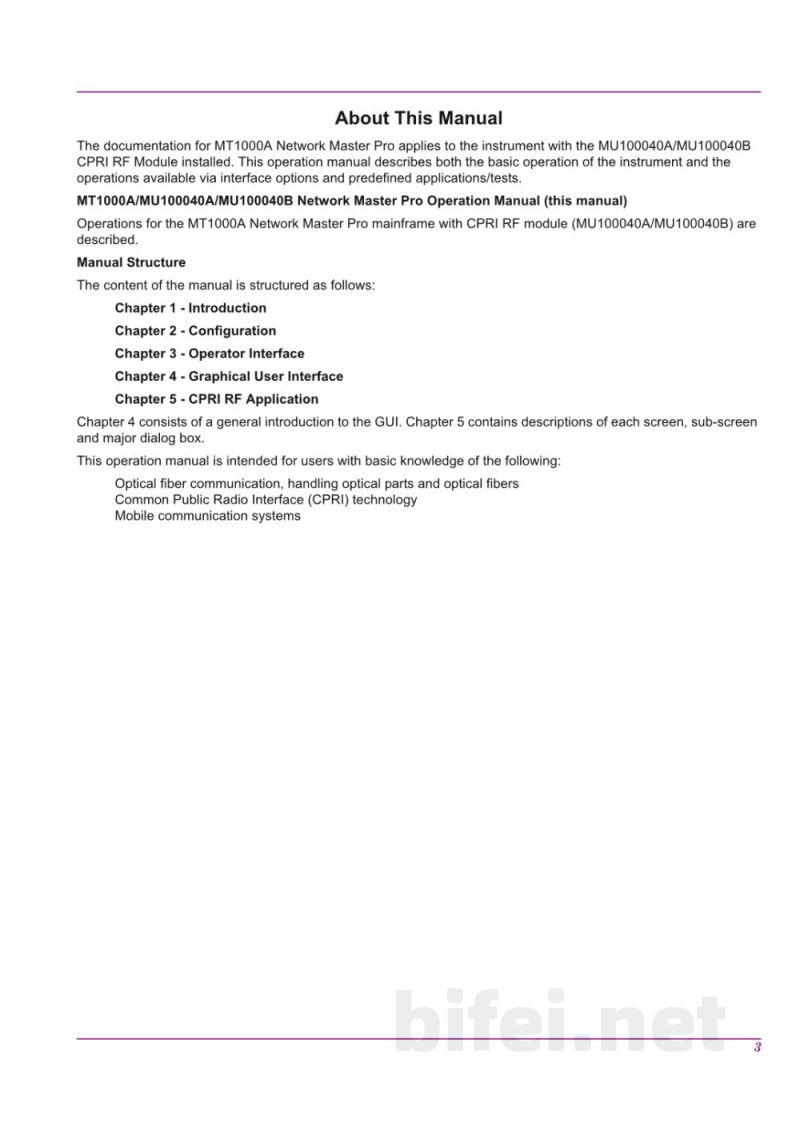

About This Manual

The documentation for MT1000A Network Master Pro applies to the instrument with the MU100040A / MU100040B CPRI RF module installed. This operation manual describes both the basic operation of the instrument and the operations available via interface options and predefined applications/tests.

MT1000A / MU100040A / MU100040B Network Master Pro Operation Manual (this manual): operations for the MT1000A Network Master Pro mainframe with CPRI RF module (MU100040A / MU100040B) are described.

Manual Structure

The content of the manual is structured as follows:
- Chapter 1: Introduction
- Chapter 2: Configuration
- Chapter 3: Operator Interface
- Chapter 4: Graphical User Interface
- Chapter 5: CPRI RF Application

Chapter 4 consists of a general introduction to the GUI. Chapter 5 contains descriptions of each screen, sub-screen, and major dialog box.

This operation manual is intended for users with basic knowledge of the following:
- Optical fiber communication and handling of optical parts and optical fibers
- Common Public Radio Interface (CPRI) technology
- Mobile communication systems

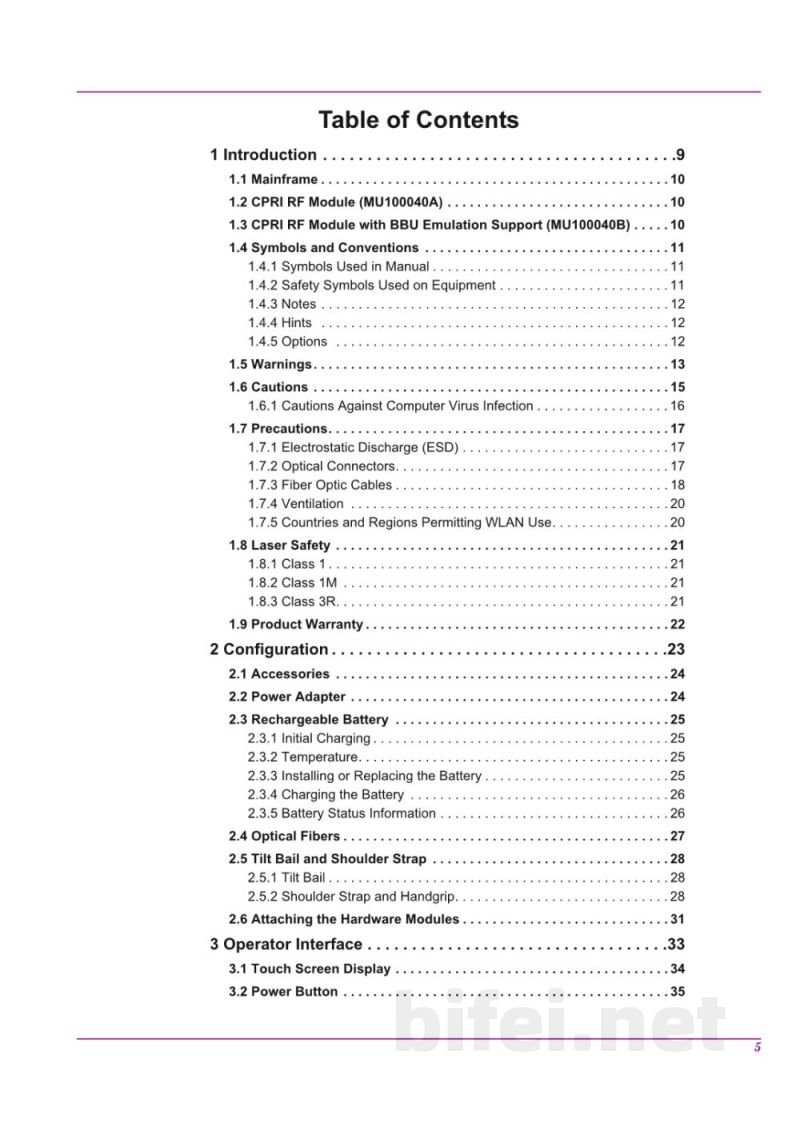

Table of Contents (Excerpt)

1 Introduction

1.1 Mainframe
1.2 CPRI RF Module (MU100040A)
1.3 CPRI RF Module with BBU Emulation Support (MU100040B)

1.4 Symbols and Conventions
- Symbols used in manual
- Safety symbols used on equipment
- Notes
- Hints
- Options

1.5 Warnings
1.6 Cautions
1.6.1 Cautions against computer virus infection

1.7 Precautions
- Electrostatic Discharge (ESD)
- Optical connectors
- Fiber optic cables
- Ventilation
- Countries and regions permitting WLAN use
